Geometry Grounded Vision Language Model with Unified 3D Reconstruction and Spatial Reasoning

Wenbo Hu1,2*, Jingli Lin1,3*, Yilin Long1,4*, Yunlong Ran1,5, Lihan Jiang1,6, Yifan Wang1,3, Chenming Zhu1,7, Runsen Xu1,8, Tai Wang1†, Jiangmiao Pang1†
1Shanghai AI Lab, 2UCLA, 3SJTU, 4FDU, 5ZJU, 6USTC, 7HKU, 8CUHK
(* indicates equal contribution, † indicates corrsponding author)
arXiv Code

🤗

 Model Twitter

We present G2VLM, a geometry grounded vision-language model proficient in both spatial 3D reconstruction and spatial understanding tasks. For spatial reasoning questions, G2VLM can directly predict 3D geometry and employ interleaved reasoning for an answer

Abstract

Vision-Language Models (VLMs) still lack robustness in spatial intelligence, demonstrating poor performance on spatial understanding and reasoning tasks. We attribute this gap to the absence of a visual geometry learning process capable of reconstructing 3D space from 2D images. We present G2VLM, a geometry grounded vision-language model that bridges two fundamental aspects of spatial intelligence: spatial 3D reconstruction and spatial understanding. G2VLM natively leverages learned 3D visual geometry features to natively predict 3D attributes and enhance spatial reasoning tasks via in-context learning and interleaved reasoning. Our unified design is highly scalable for spatial understanding: it trains on abundant multi-view image and video data, while simultaneously leveraging the benefits of 3D visual priors that are typically only derived from hard-to-collect annotations. Experimental results demonstrate G2VLM is proficient in both tasks, achieving comparable results to state-of-the-art feed-forward 3D reconstruction models and achieving better or competitive results across spatial understanding and reasoning tasks. By unifying a semantically strong VLM with low-level 3D vision tasks, we hope G2VLM can serve as a strong baseline for the community and unlock more future applications, such as 3D scene editing.

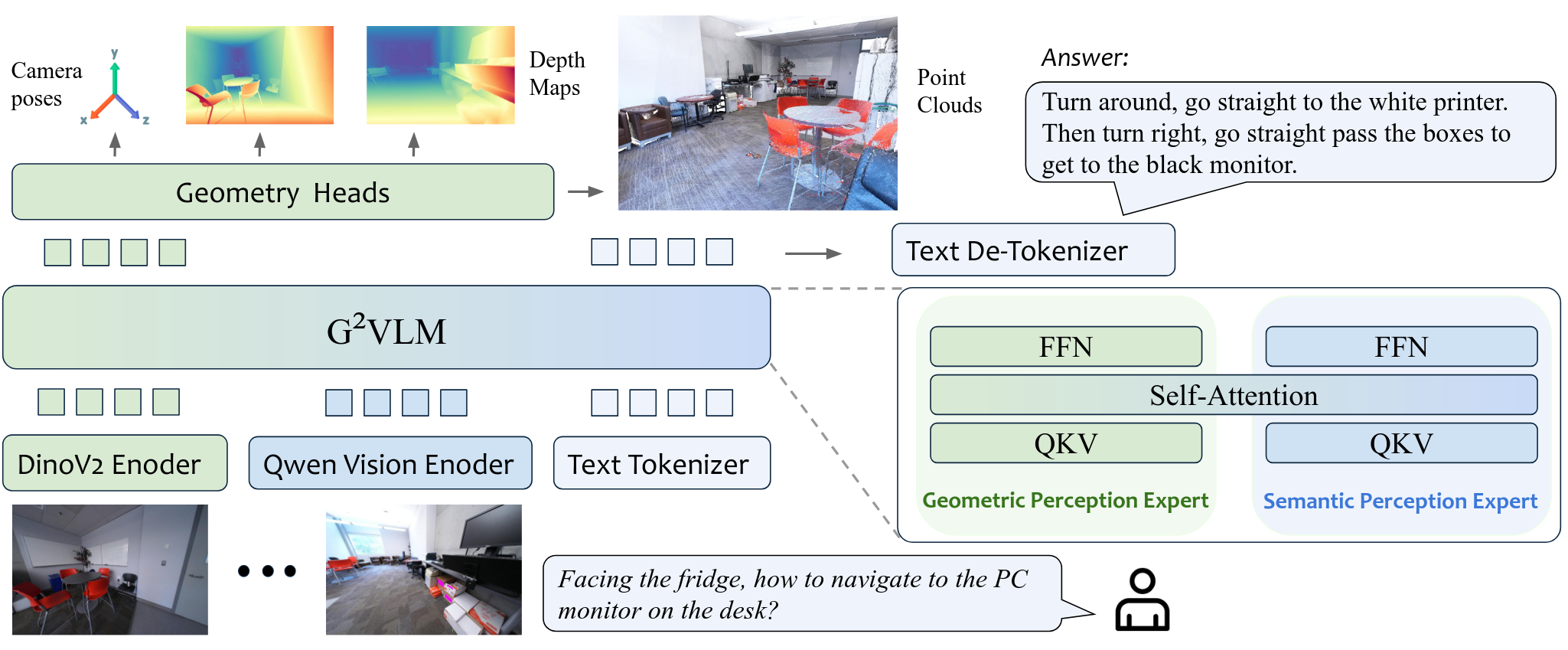

G2VLM Architecture

We present G2VLM, a unified model that integrates both a geometric perception expert for 3D reconstruction and a semantic perception expert for multimodal understanding and spatial reasoning tasks. All tokens can do shared multi-modal self attention in each transformer block.

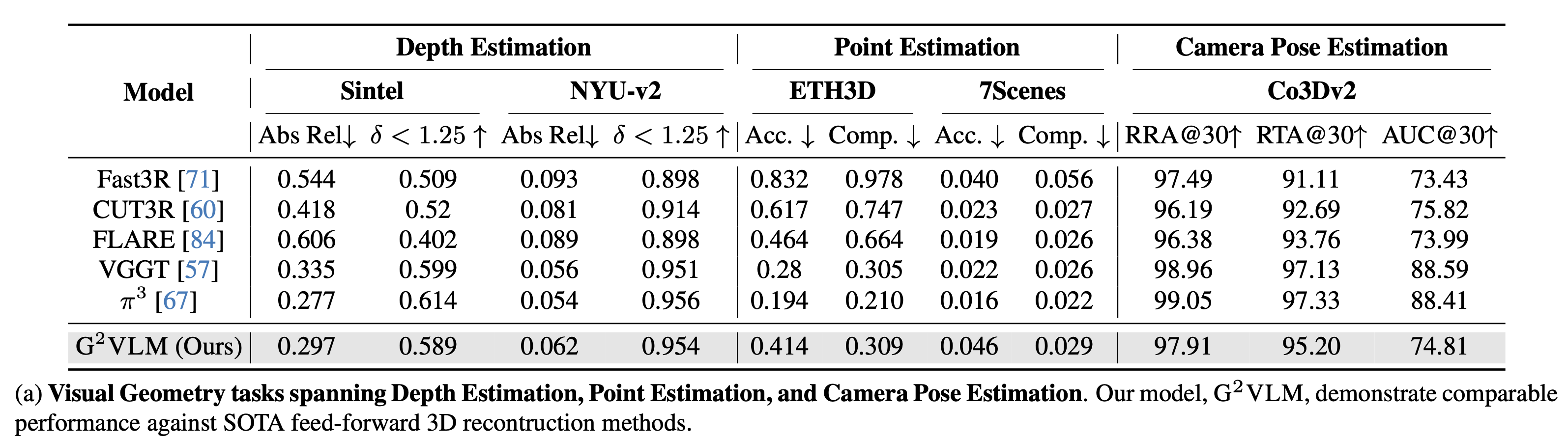

Visual Geometric Results

Spatial Reasoning Results

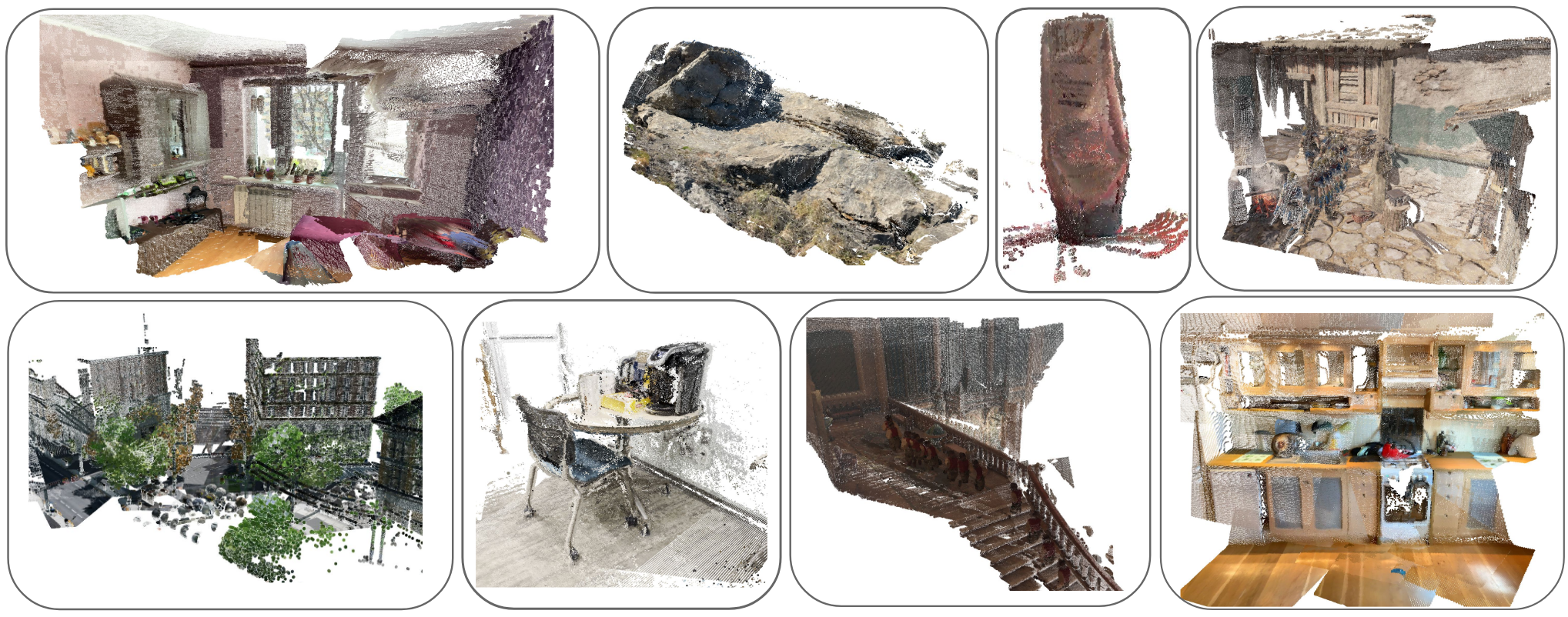

Qualitative Results

Qualitative results of our model. G2VLM effectively reconstructs a diverse set of open-domain images, spanning object-level, structure-level, indoor, and outdoor scenes, including both dynamic and static content.

Experimental Study

Experimental study results. For all visual geometry scores, the lower is the better. (a) The dual encoder design, with both a semantic-rich CLIP encoder and a low-level vision DINO encoder, yields the best performance on both visual geometry and spatial understanding tasks. (b) Training loss curves for three different attention mechanisms during geometric perception expert training; global attention is consistently the best variant. (c) Comparison of three different loss supervision mechanisms during the joint-training stage.

BibTeX

@article{hu2025g2vlmgeometrygroundedvision,
      title={G$^2$VLM: Geometry Grounded Vision Language Model with Unified 3D Reconstruction and Spatial Reasoning},
      author={Wenbo Hu and Jingli Lin and Yilin Long and Yunlong Ran and Lihan Jiang and Yifan Wang and Chenming Zhu and Runsen Xu and Tai Wang and Jiangmiao Pang},
      year={2025},
      eprint={2511.21688},
      archivePrefix={arXiv},
      primaryClass={cs.CV},
      url={https://arxiv.org/abs/2511.21688},
}
